• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Audio system feature, 4-speaker system on Regular Cab models

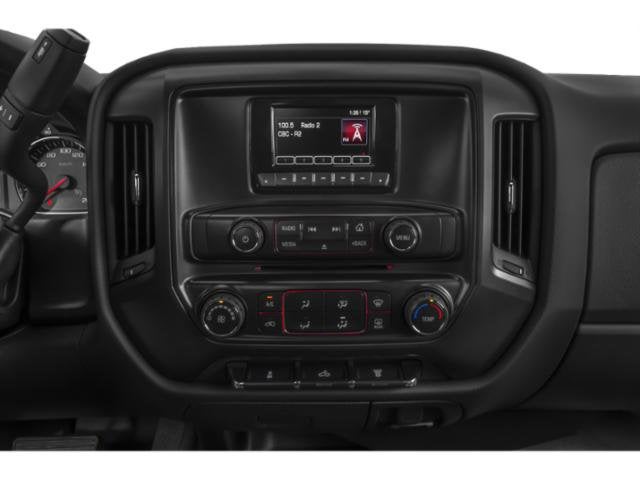

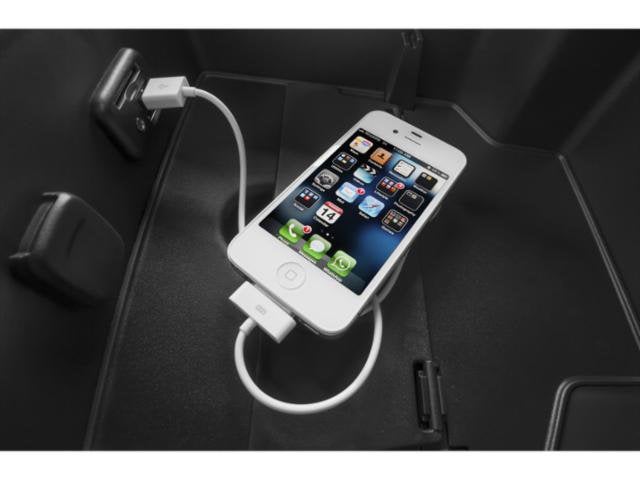

• Audio system, 4.2" Diagonal Color Display, AM/FM stereo with USB port and auxiliary jack (Upgradeable to (IOB) 7" diagonal color display radio with IntelliLink.)
• Cruise control, steering wheel-mounted
• Door locks, power
• Driver Information Center, 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information
• Floor covering, Graphite-colored rubberized-vinyl

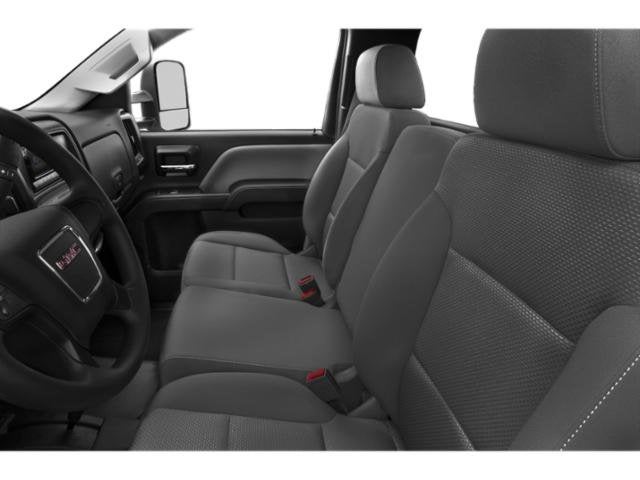

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar.
• Steering column, manual Tilt-Wheel
• Steering wheel, base

• Air cleaner, high-capacity
• Alternator, 150 amps
• Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, 4-wheel disc with DuraLife brake rotors (Requires single rear wheels.)
• Chassis, single rear wheel
• Differential, heavy-duty locking rear
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, fully-boxed, hydroformed front section

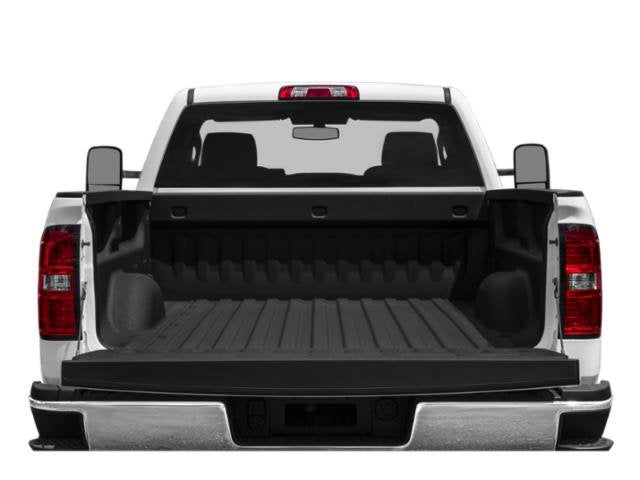

• Pickup box
• Recovery hooks, front, frame-mounted, black
• Steering, Recirculating ball with smart flow power steering system
• Suspension Package, Standard includes 51mm twin tube shock absorbers and 33mm front stabilizer bar
• Trailer brake controller, integrated (If (ZW9) pickup box delete or (9J4) rear bumper delete is ordered (JL1) trailer brake controller is deleted and available to order as a free flow option.)
• Transfer case, with floor-mounted shifter (Included with 4WD models only.)

• Air bags, single-stage frontal and thorax side-impact, driver and front passenger, and head curtain side-impact, front and rear outboard seating positions (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Daytime Running Lamps with automatic exterior lamp control
• OnStar, delete
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Teen Driver mode a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to encourage safe driving behavior. It can limit certain vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report gives you information on your teen's driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System (does not apply to spare tire) (Included and only available with (C7A) 10,000 lb. (4536 kg) GVWR.)

Snow Plow Prep Package

• Power Feed For Backup And Roof Emergency Light
• (Kw5) 220-Amp Alternator With Gas Or Diesel Engine
• Forward Lamp Wiring Harness
• (Trw) Provision For Cab Roof Mounted Lamp/Beacon
• (Nzz) Underbody Shields And Heavy-Duty Front-Springs

Suspension Package, Standard

• 51Mm Twin Tube Shock Absorbers And 33Mm Front Stabilizer Bar (Std)

Underbody Shield, Frame-Mounted Shields

• Front Underbody Shield Starting Behind Front Bumper And Running To First Cross-Member
• Protecting Front Underbody
• Oil Pan
• Differential Case And Transfer Case

Work Truck Preferred Equipment Group

• Standard Equipment

Additional Packages

• 6-Speaker Audio System
• Alternator
• 220 Amps
• Battery
• 730 Cold-Cranking Amps
• Auxiliary
• Dark Ash Seats With Jet Black Interior Accents
• Cloth Seat Trim
• Engine

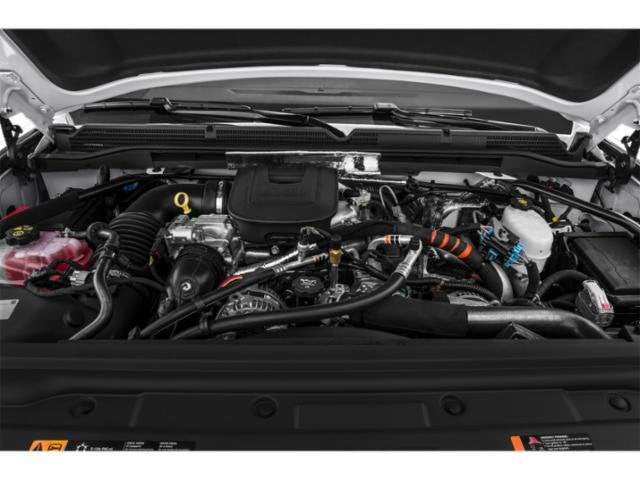

• Vortec 6.0L Variable Valve Timing V8 Sfi E85-Compatible
• Flexfuel Capable Of Running On Unleaded Or Up To 85% Ethanol (360 Hp [268.4 Kw] @ 5400 Rpm
• 380 Lb-Ft Of Torque [515.0 N-M] @ 4200 Rpm) (Std)
• Glass
• Deep-Tinted
• Lamps
• Smoked Amber Roof Marker
• Led Lighting
• Cargo Box With Switch On Center Switch Bank
• License Plate Kit
• Front Note: (Vk3) Deletes Center Lower Bumper Filler Panel.
• Mirror
• Inside Rearview Auto-Dimming
• Paint
• Solid
• Pickup Box (Std)
• Power Outlet
• 110-Volt Ac
• Provision For Cab Roof-Mounted Lamp/Beacon Provides An Instrument Panel Mounted Switch And Electrical Wiring Tucked Beneath The Headliner For A Body Upfitter To Connect A Body-Mounted Warning Or Emergency Lamp
• Rear Axle
• 4.10 Ratio
• Rear Vision Camera
• Remote Keyless Entry
• Remote Locking Tailgate
• Seats
• Front 40/20/40 Split-Bench
• 3-Passenger

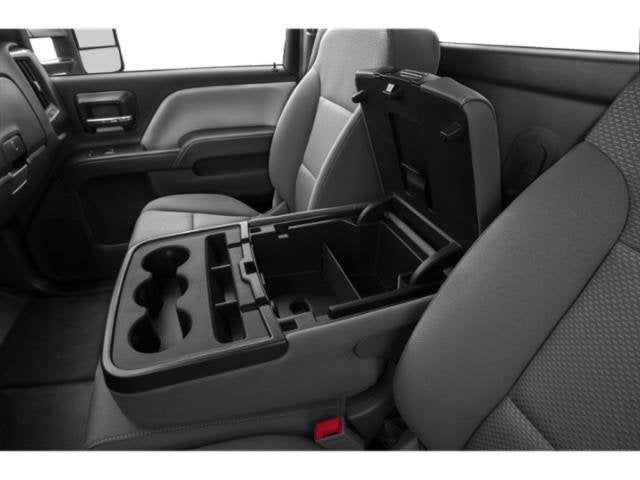

• Driver And Front Passenger Recline With Outboard Head Restraints And Center Fold-Down Armrest With Storage. Vinyl Has Fixed Lumbar And Cloth Has Manually Adjustable Driver Lumbar. (Std)
• Summit White
• Tire
• Spare Lt265/70R18e All-Season
• Blackwall
• Tires
• Lt265/70R18e All-Terrain
• Blackwall
• Trailer Brake Controller
• Integrated
• Transmission
• 6-Speed Automatic
• Heavy-Duty
• Electronically Controlled With Overdrive And Tow/Haul Mode. Includes Cruise Grade Braking And Powertrain Grade Braking (Std)
• Windows
• Power With Driver Express Up And Down And Express Down On All Other Windows

• BATTERY 730 COLD-CRANKING AMPS AUXILIARY
• GLASS DEEP-TINTED
• SUMMIT WHITE

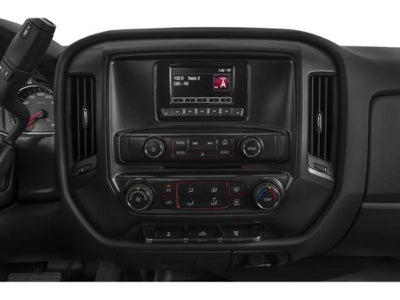

• AUDIO SYSTEM 7" DIAGONAL COLOR TOUCH SCREEN WITH INTELLILINK AM/FM with USB ports auxiliary jack Bluetooth® streaming audio for music and most phones Pandora Internet radio and voice command pass-through to phone Includes (UQ3) 6-speaker audio system (UE1) OnStar (VV4) OnStar 4G LTE Wi-Fi Hotspot.)
• TIRE SPARE LT265/70R18E ALL-SEASON BLACKWALL
• MIRROR INSIDE REARVIEW AUTO-DIMMING
• WHEEL 18" X 8" (45.7 CM X 20.3 CM) FULL-SIZE STEEL SPARE. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered.
• TRAILER BRAKE CONTROLLER INTEGRATED
• REAR AXLE 4.10 RATIO
• POWER OUTLET 110-VOLT AC
• REMOTE KEYLESS ENTRY
• AIRBAGS DOUBLE CAB AND REGULAR CAB: SINGLE-STAGE FRONTAL AIRBAGS FOR DRIVER AND FRONT OUTBOARD PASSENGER; SEAT-MOUNTED SIDE-IMPACT AIRBAGS FOR DRIVER AND FRONT OUTBOARD PASSENGER; HEAD-CURTAIN AIRBAGS FOR FRONT AND REAR OUTBOARD SEATING POSITIONS; Includes airbag deactivation switch for front outboard passenger airbag
• ONSTAR GUIDANCE PLAN for 3 months including Automatic Crash Response Stolen Vehicle Assistance Roadside Assistance Turn-by-Turn Navigation and more (trial excludes Hands-Free Calling)
• 6-SPEAKER AUDIO SYSTEM
• ENGINE VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE FLEXFUEL capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) (STD)
• SUSPENSION PACKAGE STANDARD includes 51mm twin tube shock absorbers and 33mm front stabilizer bar (STD)
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING UPPER GLASS MANUAL-FOLDING AND EXTENDING BLACK; includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp Includes (DD8) auto-dimming inside rearview mirror.)
• ALTERNATOR 220 AMPS
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)
• TIRES LT265/70R18E ALL-TERRAIN BLACKWALL
• SIERRA CONVENIENCE PACKAGE includes (DPN) outside heated power-adjustable vertical camper mirrors (AQQ) Remote Keyless Entry (A91) remote locking tailgate (UVC) Rear Vision Camera (KI4) 110-volt AC power outlet (UF2) LED cargo box lighting and (AKO) deep tinted glass
• REMOTE LOCKING TAILGATE
• PICKUP BOX (STD)
• LED LIGHTING CARGO BOX with switch on center switch bank
• PAINT SOLID
• PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON provides an instrument panel mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp
• REAR VISION CAMERA

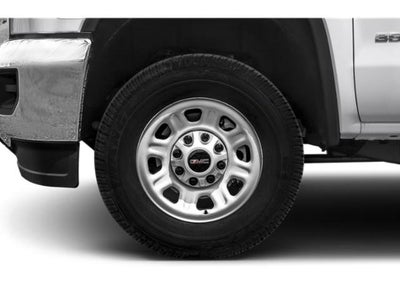

• WHEELS 18" (45.7 CM) PAINTED STEEL includes 18" x 8" (45.7 cm x 20.3 cm) steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered. (STD)
• LAMPS SMOKED AMBER ROOF MARKER
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND FRONT PASSENGER RECLINE with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
• DARK ASH SEATS WITH JET BLACK INTERIOR ACCENTS CLOTH SEAT TRIM

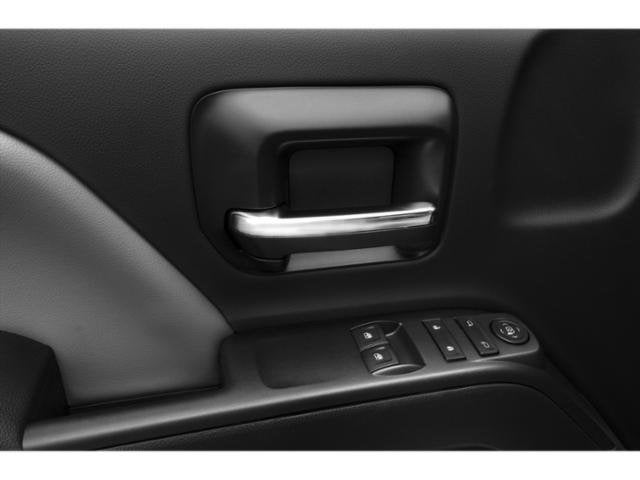

• WINDOWS POWER with driver express up and down and express down on all other windows
• ONSTAR WITH 4G LTE AND BUILT-IN WI-FI HOTSPOT CONNECTS TO THE INTERNET AT 4G LTE SPEEDS; includes OnStar Data Trial for 3 months or 3GB (whichever comes first)
• LICENSE PLATE KIT FRONT Note: (VK3) deletes center lower bumper filler panel.
• SNOW PLOW PREP PACKAGE includes power feed for backup and roof emergency light (KW5) 220-amp alternator with gas or diesel engine forward lamp wiring harness (TRW) provision for cab roof mounted lamp/beacon (NZZ) underbody shields and Heavy-Duty front-springs
• UNDERBODY SHIELD FRAME-MOUNTED SHIELDS includes front underbody shield starting behind front bumper and running to first cross-member protecting front underbody oil pan differential case and transfer case
• GVWR 10 000 LBS. (4536 KG) WITH SINGLE REAR WHEELS (STD)
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hitch
• Tow Hooks
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• HID headlights
• AM/FM Stereo
• Auxiliary Audio Input
• Split Bench Seat
• Driver Adjustable Lumbar
• Adjustable Steering Wheel
• Power Door Locks
• Cruise Control
• A/C
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Passenger Air Bag On/Off Switch
• Driver Restriction Features
• Tire Pressure Monitor

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.8 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Cargo Area Dimensions
• Cargo Box (Area) Height (in): 21.22
• Cargo Box Length : Floor (in)
• Cargo Box Width : Floor (in)
• Cargo Box Width : Top, Rear (in)
• Cargo Box Width : Wheelhousings (in)
• Cargo Volume (ft³): 76.3
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 220
• Emissions
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Cab to Axle (in): 55.16
• Front Bumper to Back of Cab (in): 117.10
• Ground Clearance, Rear (in): 8.66
• Ground to Top of Load Floor (in): 39.37
• Height, Overall (in): 77.24
• Length, Overall w/o rear bumper (in): 224.4
• Wheelbase (in): 133.60
• Width, Max w/o mirrors (in): 80.12
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Interior Dimensions
• Front Head Room (in): 42.40
• Front Hip Room (in): 60.73
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 66.03
• Passenger Capacity: 3
• Steering
• Steering Ratio (:1), At Lock: N/A
• Steering Ratio (:1), On Center: 16.00
• Steering Type: Pwr Recirculating Ball
• Turning Diameter - Curb to Curb (ft): 45.9
• Turning Diameter - Wall to Wall (ft): N/A
• Summary
• Body Code: E63

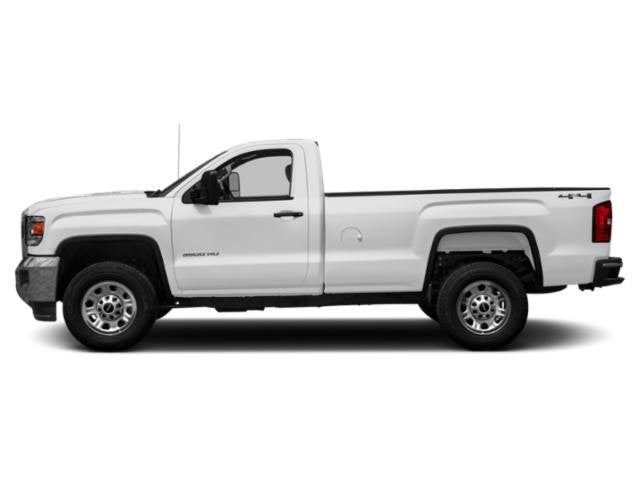

• Body Style: Regular Cab Pickup

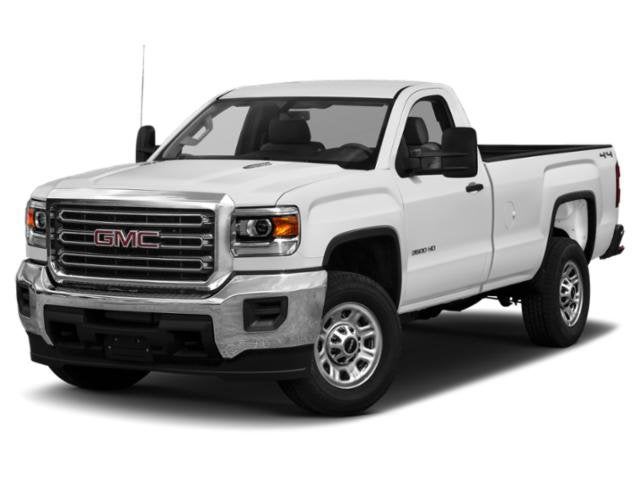

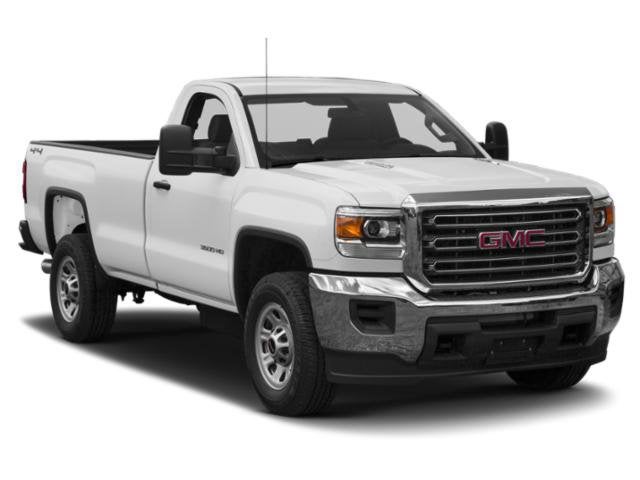

• Vehicle Name: GMC Sierra 3500HD
• Suspension
• Axle Capacity - Front (lbs): 4400
• Axle Capacity - Rear (lbs): 7050
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Shock Absorber Diameter - Front (mm): 51.00
• Shock Absorber Diameter - Rear (mm): 51.00
• Spring Capacity - Front (lbs): 4400
• Spring Capacity - Rear (lbs): 7050
• Stabilizer Bar Diameter - Front (in): 1.31
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Tires
• Front Tire Capacity (lbs): 5600
• Front Tire Order Code: QGM
• Front Tire Size: LT265/70R18E
• Rear Tire Order Code: QGM
• Rear Tire Size: LT265/70R18E
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Spare Tire Order Code: ZWF
• Spare Tire Size: LT265/70R18E
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3575
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 14300
• Maximum Trailering Capacity (lbs): 23300
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1430
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 14300
• Weight Information
• Curb Weight - Front (lbs): 3579
• Curb Weight - Rear (lbs): 2735
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 7050
• Gross Combined Wt Rating (lbs): 21100
• Gross Vehicle Weight Rating Cap (lbs): 10000
• Wheels

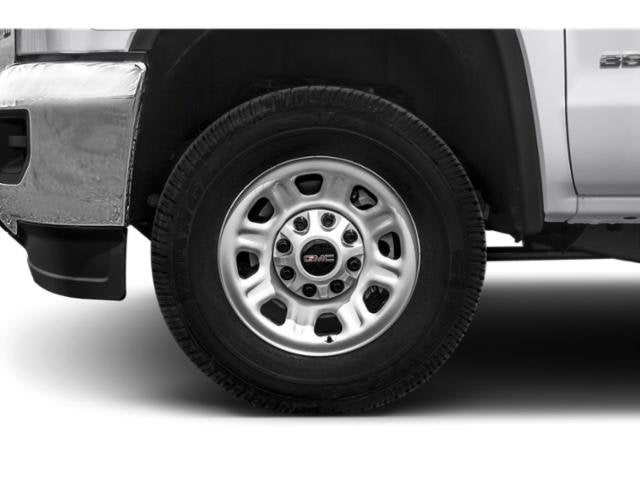

• Front Wheel Material: Steel
• Front Wheel Size (in): 18 x 8.0
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 18 x 8.0
• Spare Wheel Size (in): 18 x 8.0
